DOM (Document Object Model)

3 min read

Overview

A tree-like representation of the web that gets loaded in the browser ⇒ represents the document as nodes and objects

  • Catalogues the web page into individual objects that we can select and manipulate
  • As the browser parses the HTML, it creates a JavaScript object for every element and section of text encountered. These objects are called nodes—element nodes and text nodes, respectively.

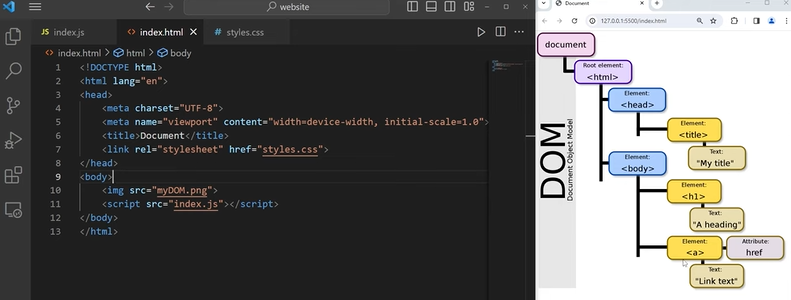

  • Diagram
  • When web browser loads an HTML document, it constructs the DOM and structures all elements in a tree-like representation
  • JavaScript can access the DOM to dynamically change the content, structure, and style of a web page

Using JS to manipulate DOM

  • the HTML itself represents the initial page content, and the DOM represents the updated page content which was changed by the JavaScript code you wrote
  • Objects inside the DOM have property and methods
    • properties
    • innerHTML
    • innerText
    • style
    • firstElementChild
    • method
    • something an object can do (has to be associated with an object unlike a function)
    • click()
    • appendChild()
    • setAttribute()

Examples

  • document.firstElementChild
    • gives you <head>
  • document.lastElementChild
    • gives you <body>
  • document.querySelector(".class")
    • returns the first Element within the document that matches the specified CSS selector
    • document.querySelector("input").click()
      • looks at entire document for the object that has the selector of “input”, then click
        • element/class/id
        • class: document.querySelector(".input")
        • id: document.querySelector("#title")
      • returns 1 item
      • selects the first match in the DOM
  • document.querySelectorAll
    • returns array
  • document.getElementById("btn")
    • returns 1 item (not array)
  • document.getElementsByTagName("li")
    • looks through the webpage and searches for the elements with a particular tag name
    • gets back an array that contains the element
    • we can use any methods for the array
      • .length
  • document.getElementsByClassName("btn")
    • returns array

Text manipulation

  • document.getElementById("btn").innerHTML
    • gives u the html that’s in between the element tags
    • "<strong>Hello</strong>"
  • document.getElementById("btn").textContent
    • gives you only the string
    • "Hello"

Attribute manipulation

  • document.querySelector("a").attributes
    • gives a list of all attributes
  • document.querySelector("a").getAttribute("href")
  • document.querySelector("a").setAttribute("href", "the link")
    • 1st: attribute you wanna change
    • 2nd: what you want to change it to

When you’re trying to use JS to change properties instead of CSS

  • https://www.w3schools.com/jsref/dom_obj_style.asp
  • properties in CSS are hyphen splitted (font-size) but when it comes to JS, it becomes camel case (fontSize)
  • but in most cases they are the same
  • also the value has to be represented in string (even though its a number)
  • document.querySelector("h1").style.fontSize = "2rem"

Examples

  1. Blackjack - We can use getElementById and querySelector like this
let messageEl = document.getElementById("message-el");
// let sumEl = document.getElementById("sum-el");
let sumEl = document.querySelector("#sum-el");
<body>
	<h1>Blackjack</h1>
	<p id="message-el">Want to play a round?</p>
	<p>Cards:</p>
	<p id="sum-el">Sum:</p>
</body>
  1. Rendering list with innerHTML, or document.createElement
<body>
	<ul id="ul-el"></ul>
</body>
let myLeads = ["test1", "test2", "test3"];
const ulEl = document.getElementById("ul-el");
for (let i = 0; i < myLeads.length; i++) {
  console.log(myLeads[i]);
  ulEl.innerHTML += "<li>" + myLeads[i] + "</li>";
}

// another way
for (let i = 0; i < myLeads.length; i++) {
  console.log(myLeads[i]);
  // ulEl.innerHTML += "<li>" + myLeads[i] + "</li>";
  const li = document.createElement("li");
  li.textContent = myLeads[i];
  ulEl.append(li);
}

DOM Event types

  1. User Interface events
    • load and unload, abort/error, user selection of text in page
  2. Focus events
  3. mouse events
    • click, mouseover, etc
  4. . wheel events
    • wheel
  5. input events
    • before/after input
  6. keyboard events
  7. composition events
    • inputting text in alternate manner
