Entity Relationship Mapping

16 min read

Entity

Process of telling your JPA provider (like Hibernate) how to translate the object-oriented relationships in your code into the foreign key relationships used by a relational database

  • Establishes relationships with each other through object references
  • Entity Design - Mapping a single entity to a DB table
    • Now, we want to map the relationship between entities
  • The most important/difficult concept in JPA

Types of Relationships

Entity relationships can be categorized based on two main criteria:

  1. Directionality: Based on the direction of the object reference, relationships can be unidirectional or bidirectional.
  2. Multiplicity: Based on the number of objects that can be referenced, relationships can be One-to-Many (1:N), Many-to-One (N:1), Many-to-Many (N:N), or One-to-One (1:1).
    • One to Many (1: N) 일대다 - @OneToMany
    • Many to One (N:1) 다대일 - @ManyToOne
    • Many to Many (N:N) 다대다 - @ManyToMany
    • One to One (1:1) 일대일 - @OneToOne

Example

For example, let’s take a One-to-Many relationship between Member and Order.

  • Unidirectional One-to-Many:
    • The Member entity has a List<Order>.
    • The Order entity has no reference back to the Member.
    • Only the Member “knows” about the relationship. You can navigate from a member to their orders, but not from an order back to its member.
  • Bidirectional One-to-Many:
    • The Member entity has a List<Order>.
    • The Order entity also has a Member field.
    • Both entities “know” about the relationship. You can navigate from a member to their orders, and you can also navigate from an order back to the member who placed it.

Mini Example

  • Before
    • Relationship between Member and Orders (One-to-Many):
      • One member can place multiple orders.
    • Relationship between Orders and Coffee (Many-to-Many):
      • One order can contain multiple types of coffee.
      • One type of coffee can be part of multiple orders.
  • After
    • A Many-to-Many (N:N) relationship is typically redesigned into a pair of One-to-Many (1:N) and Many-to-One (N:1) relationships using an intermediate table. The relationship above is therefore changed as follows:
    • Orders and Order_Coffee: One-to-Many (1:N)
    • Order_Coffee and Coffee: Many-to-One (N:1)

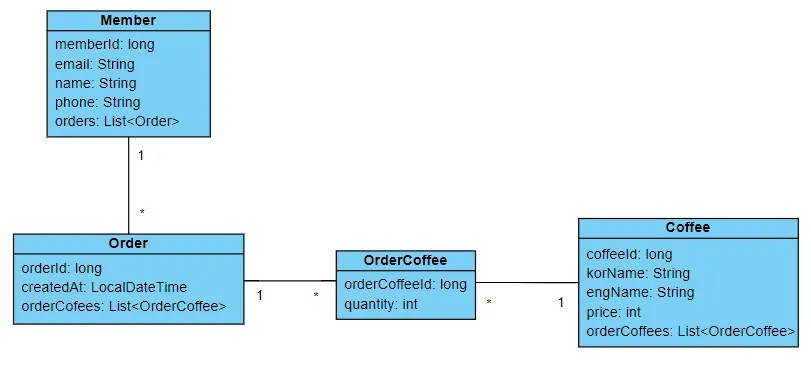

Diagram

  • Member Entity class
    • One member can have multiple orders ⇒1:N relationship with Order class
    • List<Order> field added to Member class
    • Database tables are related using foreign keys, but classes are related through object references
  • Order Entity Class
    • The Order class originally has a Many-to-Many relationship with the Coffee class.
    • To resolve this, a List<OrderCoffee> member variable is added, which breaks the N:N relationship into a 1:N relationship (from Order to OrderCoffee).
    • has NO reference to Member
  • Coffee Entity Class
    • Similarly, the Coffee class has a Many-to-Many relationship with the Order class. A List<OrderCoffee> member variable is added here as well to create a 1:N relationship (from Coffee to OrderCoffee).
  • OrderCoffee (Join) Entity
    • Because Order and Coffee have a Many-to-Many relationship, the OrderCoffee class was added to break this into two separate 1:N, N:1 relationships.
    • A quantity member variable was added because an order can include more than one of the same type of coffee.

Unidirectional Relationships (단방향)

Overview

A relationship where only one of the two classes holds a reference to the other is called a unidirectional relationship.

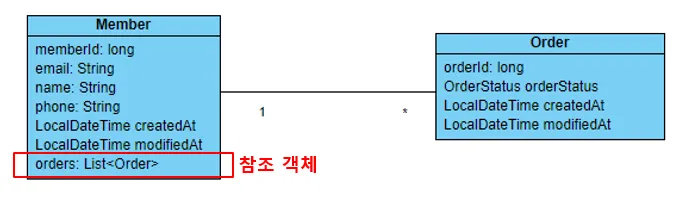

  • The Member class contains a List of Order objects ⇒ it can reference the Orders.
    • Therefore, a Member can access information about its Orders.
  • However, the Order class has no reference to the Member class, so from an Order’s perspective, it cannot know which Member it belongs to -

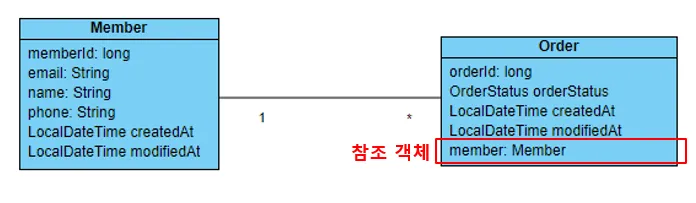

  • Order class holds a reference to a Member object, so it can access the Member’s information
  • However, the Member class has no reference to the Order class, so from a Member’s perspective, it cannot know about its Orders
  • CANNOT PUT member_Id
    • Since JPA is an ORM, if we just add member_Id it will interpret this as just referring to one specific column in Member and not the entire Member entity itself
    • If we have Order, it should be able to bring the entire Member
  • When you fetch an Order, JPA automatically uses the foreign key of Member member to retrieve the full Member entity for you

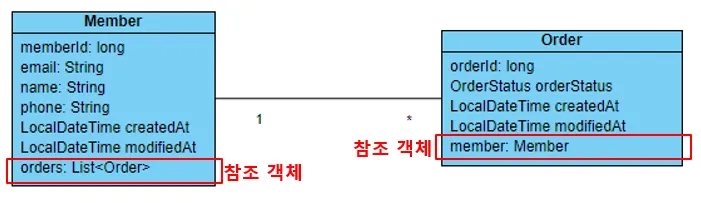

Bidirectional Relationships

Overview

Both classes hold reference to the other

  • Member
    • contains a List of Order objects, allowing it to reference and access information about its Orders
  • Order
    • also holds a reference to a Member object, allowing it to access information about its Member
  • Because both classes hold a reference to each other, a Member can know about its Orders, and an Order can know about the Member it belongs to. This type of relationship, where both sides hold a reference to the other, is called a bidirectional relationship
  • JPA (ORM) supports both unidirectional and bidirectional relationships, whereas Spring Data JDBC only supports unidirectional relationships.

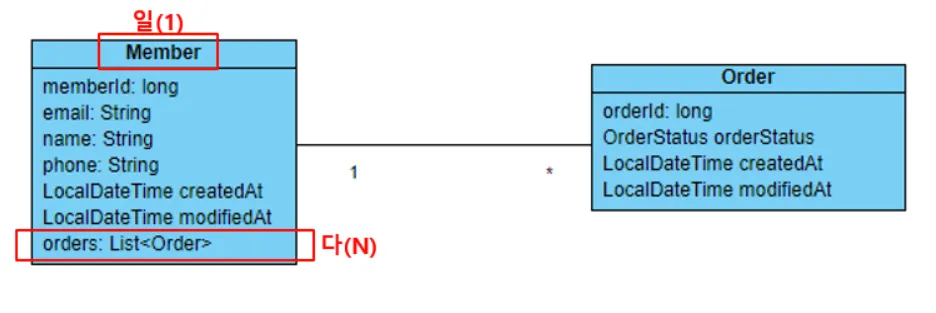

One-to-Many + Unidirectional (일대다, 단방향)

  • A one-to-many (1:N) relationship means that one class (the “one” side) can hold references to multiple objects of another class (the “many” side).
  • Member
    • One member can place multiple orders, so Member and Order have a one-to-many relationship.
    • Because only the Member class holds a reference to a List<Order>, this is also a unidirectional relationship.

NOT commonly used - look at DB table

  • In database tables, the “many” side holds the foreign key
    • so Order has member_id
  • But like in our first diagram, if we make this one to many unidirectional, then the Order class doesn’t have a reference to the Member class, which is what corresponds to the foreign key in the db
  • so the object structure doesn’t align well with the db table relationship
  • Why learn this?
    • when creating bidirectional relationships ⇒ first establish a many-to-one unidirectional mapping, and then, if necessary, add the one-to-many mapping to the other side to complete the bidirectional relationship

One-One

  • Mapping a one-to-one (1:1) relationship follows the same logic as a many-to-one relationship; you simply use the @OneToOne annotation instead.
  • The recommended approach is to first create the unidirectional mapping on the entity whose table holds the foreign key. Then, if needed, you can make it bidirectional by adding @OneToOne(mappedBy = "...") to the other side.

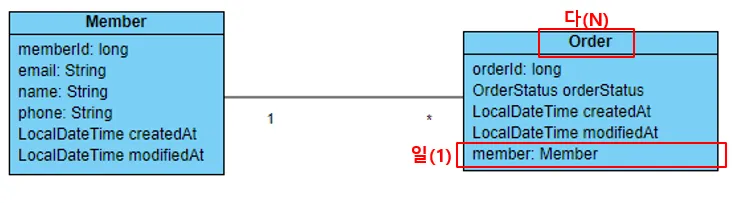

⭐Many-to-One + Unidirectional (다대일, 단방향)

Overview

A many-to-one (N:1) relationship means that the class on the “many” side holds a reference to an object of the class on the “one” side.

  • many to one
    • a Member can have multiple Orders
  • unidirectional
    • only the Order class holds a reference to the Member object
  • naturally mirrors the database table structure
    • as the ORDERS table holds a foreign key (member_id) to the MEMBER table, the Order class holds a reference to the Member object as if it were a foreign key
  • Because this object structure aligns so well with the underlying table relationship, many-to-one unidirectional mapping is the most fundamental and commonly used relationship mapping in JPA.

⭐Example: N:N(1:N & N:1) + Bidirectional

Overview

This is bidirectional & N:N, made out of 1:N (member) and N:1 (Order)

Order

@NoArgsConstructor
@Getter
@Setter
@Entity(name = "ORDERS")
public class Order {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long orderId;

    @Enumerated(EnumType.STRING)
    private OrderStatus orderStatus = OrderStatus.ORDER_REQUEST;

    @Column(nullable = false)
    private LocalDateTime createdAt = LocalDateTime.now();

    @Column(nullable = false, name = "LAST_MODIFIED_AT")
    private LocalDateTime modifiedAt = LocalDateTime.now();


    @ManyToOne   // (1)
    @JoinColumn(name = "MEMBER_ID")  // (2)
    private Member member;

    public void addMember(Member member) {
        this.member = member;
    }

    public enum OrderStatus {
        ORDER_REQUEST(1, "주문 요청"),
        ORDER_CONFIRM(2, "주문 확정"),
        ORDER_COMPLETE(3, "주문 완료"),
        ORDER_CANCEL(4, "주문 취소");

        @Getter
        private int stepNumber;

        @Getter
        private String stepDescription;

        OrderStatus(int stepNumber, String stepDescription) {
            this.stepNumber = stepNumber;
            this.stepDescription = stepDescription;
        }
    }
}
  • @ManyToOne
    • Tells “Many Order entities can be associated with one Member entity”
  • @JoinColumn
    • specifies the foreign key column in the database
  • basically
    • Member has private List<Order> orders - 1:N / 일대다
    • Order has private Member member - N:1/다대일
    • We created a bidirectional relationship

Member

@NoArgsConstructor
@Getter
@Setter
@Entity
public class Member {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long memberId;

    @Column(nullable = false, updatable = false, unique = true)
    private String email;

    @Column(length = 100, nullable = false)
    private String name;

    @Column(length = 13, nullable = false, unique = true)
    private String phone;

    @Column(nullable = false)
    private LocalDateTime createdAt = LocalDateTime.now();

    @Column(nullable = false, name = "LAST_MODIFIED_AT")
    private LocalDateTime modifiedAt = LocalDateTime.now();

	// (1)
    @OneToMany(mappedBy = "member")
    private List<Order> orders = new ArrayList<>();

    public Member(String email) {
        this.email = email;
    }

    public Member(String email, String name, String phone) {
        this.email = email;
        this.name = name;
        this.phone = phone;
    }

    public void addOrder(Order order) {
        orders.add(order);
    }
}
  • OneToMany
    • defines a one-to-many relationship ⇒ “One Member can be related to many Orders”
  • @OneToMany(mappedBy = "member")
    • Why
      • If we don’t have this, it would be Many To One Unidirectional relationship, with only Order referencing Member
      • From the member’s perspective, they should be able to see a list of their own orders
    • mappedBy (mandatory)
      • @ManyToOne + @OneToMany
        • most common and standard way to create a bidirectional relationship in JPA
        • On the @OneToMany side (the “one” side, e.g., Member), the mappedBy value is always the name of the field on the @ManyToOne side (the “many” side, e.g., Order).
        • You use @ManyToOne to create the essential, foreign-key-based relationship, and then you add @OneToMany to make that same relationship conveniently accessible from the other direction
      • specifies the field that “owns” the relationship
        • the Order is the “owner” because its table (ORDERS) contains the foreign key (MEMBER_ID) ⇒ The “Many” side is always the owner
        • Order.member field is the owner, the Member.orders list is the non-owning (inverse) side
        • “Hey JPA, this is not a new relationship. Just use the one that is already defined by the member field in the Order class.”
      • think of it this way
        • 참조객체의 외래키의 역할을 하는 필드
          • Order 의 외래키 역할을 하는건 member임
        • member의 기본키 == order의 외래키
        • 외래키가 여러개일수 있으니, 참조객체의 필드 중 어떤 필드가 나를 참조하는지

Saving data to the actual tables

@Configuration
public class JpaManyToOneBiDirectionConfig {
    private EntityManager em;
    private EntityTransaction tx;

    @Bean
    public CommandLineRunner testJpaManyToOneRunner(EntityManagerFactory emFactory) {
        this.em = emFactory.createEntityManager();
        this.tx = em.getTransaction();

        return args -> {
            mappingManyToOneBiDirection();
        };
    }

    private void mappingManyToOneBiDirection() {
        tx.begin();
        Member member = new Member("hgd@gmail.com", "Hong Gil Dong",
                "010-1111-1111");
        Order order = new Order();

        member.addOrder(order); // (1)
        order.addMember(member); // (2)

        em.persist(member);   // (3)
        em.persist(order);    // (4)

        tx.commit();

				// (5)
        Member findMember = em.find(Member.class, 1L);

        // (6) 이제 주문한 회원의 회원 정보를 통해 주문 정보를 가져올 수 있다.
        findMember
                .getOrders()
                .stream()
                .forEach(findOrder -> {
                    System.out.println("findOrder: " +
                            findOrder.getOrderId() + ", "
                            + findOrder.getOrderStatus());
                });
    }
}

To place an order, you first need member information.

  1. member.addOrder(order);
    • add the order object to the member object’s list of orders
      • Even if you skip this step, the member and order information will still be saved correctly in the database tables (because the “owner” side of the relationship dictates the foreign key).
    • However, if you don’t add the order to the member’s list and then retrieve that member object with find() later in the same transaction (as in step 5), you won’t be able to access the order via object graph traversal.
      • This is because the find() method retrieves the member object from the 1st-level cache, and the cached object you’re retrieving is the same instance that never had the order added to its list.
  2. add the member object to the order object.
    • This step is mandatory. As we saw with the many-to-one relationship, the member field on the order object acts as the foreign key.
    • If you forget to add the member to the order, the MEMBER_ID column for that order in the ORDERS table will be null, as there is no object reference to establish the foreign key.
  3. Save the member information.
  4. Save the order information.
  5. Retrieve the member information you just saved (which will be fetched from the 1st-level cache).
  6. Because you’ve mapped a bidirectional relationship (and correctly set both sides of it in the code), you can now use object graph traversal to access the List<Order> from the member object you just retrieved.

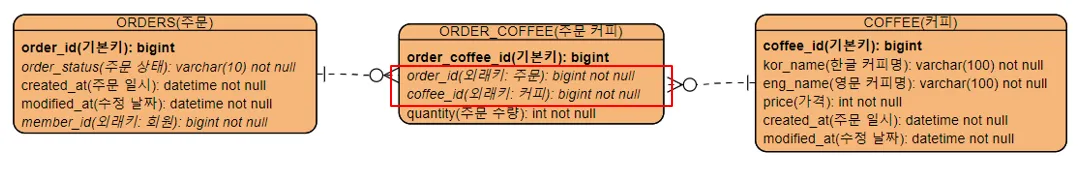

In the database table

When designing database tables, the standard approach is to resolve a many-to-many relationship by adding an intermediate table (also known as a join table) to create two separate one-to-many relationships.

  • Ultimately, mapping a many-to-many relationship is just a process of connecting two one-to-many relationships.

Owner of the Relationship

Overview

In a bidirectional relationship, you must specify which side manages the foreign key (FK). This side is called the owner of the relationship.

  • The entity whose table contains the FK is the owner
  • Only the owner can modify the FK value, and db updates are based ONLY on the state of the owner!
  • JPA must have a clear way to know where the foreign key is located
@Entity
public class Member {
    @Id @GeneratedValue
    private Long id;

    @OneToMany(mappedBy = "member") // Order의 member가 FK를 가진 주인
    private List<Order> orders = new ArrayList<>();
}

@Entity //<<<<<<<<<<<<<<<<<<<< OWNER <<<<<<<<<<<<<<<<<<<<<
public class Order {
    @Id @GeneratedValue
    private Long id;

    @ManyToOne
    @JoinColumn(name = "member_id") // 외래키 관리
    private Member member;
}
Member member = new Member();
Order order = new Order();

member.getOrders().add(order); // Does NOT affect the database ❌

order.setMember(member);       // DOES affect the database ✅
  • Adding to the orders list of the non-owner (Member) will not be reflected in the database.
  • You must set the member field of the owner (Order) for the change to be reflected in the database.
  • Order = owner
    • @ManyToOne
    • When you call order.setMember(member);, you are directly telling JPA, “Set the value of the MEMBER_ID foreign key column for this order.” JPA can translate this into a clear SQL UPDATE or INSERT statement.
    • When you fetch an Order, JPA automatically uses the foreign key of Member member to retrieve the full Member entity for you
  • Member
    • @OneToMany(mappedBy)
    • The Member entity has the field private List<Order> orders;, which is marked with @OneToMany(mappedBy = "member").
    • The mappedBy attribute essentially tells JPA: “This list is just a convenient, in-memory mirror. Do not use this side to update the database. The real relationship is managed by the member field in the Order class.”
    • Because JPA is instructed to ignore the non-owner side for database updates, adding an order to the member’s list (member.getOrders().add(order);) doesn’t generate any SQL to update the foreign key. Only changes to the owner side matter for persistence.

Convenience method (편의 메서드)

Overview

A convenience method is a helper method you add to your entity class to correctly and safely manage a bidirectional relationship in a single step.

When working with a bidirectional relationship (e.g., between Member and Order), you must set both sides of the relationship in your code to keep your Java objects consistent.

// Inside the Member.java class
public class Member {
    // ...
    @OneToMany(mappedBy = "member")
    private List<Order> orders = new ArrayList<>();

    // This is the convenience method
    public void addOrder(Order order) {
        this.orders.add(order);  // 1. Add the order to this member's list of orders.
        order.setMember(this);   // 2. Set the member on the order (the other side).
    }
}

How to Use It

Now, you can manage the relationship with a single, safe method call, which prevents mistakes and makes your code cleaner.

// The clean and safe way
Order order = new Order();
Member member = new Member();

member.addOrder(order); // This one line handles everything!

Recommended Practices for Relationship Mapping

  1. Avoid using one-to-many unidirectional mapping by itself because the entity that should correspond to the foreign key does not have the object reference
  2. Always start by applying a many-to-one unidirectional mapping first.
  3. Only add a bidirectional mapping if the initial unidirectional mapping doesn’t allow for the object graph traversal you need.
  4. For bidirectional relationships, write convenience methods to ensure both sides of the relationship are set correctly.

Key Points

  • Spring Data JDBC only supports unidirectional mapping, but JPA supports both unidirectional and bidirectional mapping.
  • JPA supports one-to-many (1:N), many-to-one (N:1), many-to-many (N:N), and one-to-one (1:1) relationships.
  • The @ManyToOne annotation is used on the “many” side of a relationship.
    • The @JoinColumn annotation is used with @ManyToOne. Its name attribute specifies the name of the column that will store the foreign key.
  • The @OneToMany annotation is used on the “one” side to make a relationship bidirectional. Its mappedBy attribute is set to the name of the field in the other entity that manages the relationship.
  • A many-to-many relationship is mapped by first applying two many-to-one unidirectional mappings and then making them bidirectional if necessary.
  • A one-to-one relationship is mapped the same way as a many-to-one relationship (both uni- and bidirectional), just using the @OneToOne annotation instead.
  • 엔티티 클래스의 연관 관계에 대해서 더 알아보고 싶다면 아래 링크를 참고하세요.
  • JPA에서 FETCH가 무엇이고, FETCH 방식에는 어떤 것이 있는지 알아보고 싶다면 아래 링크를 참고하세요.
  • JPA에서 CASCADE가 무엇인지 알아보고 싶다면 아래 링크를 참고하세요.

MessageAttachments notes

Why Many-to-Many?

  • One message can have many attachments (a message can have multiple files)
  • One attachment can be in many messages (the same file can be shared across different messages) That’s a many-to-many relationship!

What are those attributes?

The @JoinTable annotation tells JPA how to create the “bridge table” that connects messages and attachments.

@ManyToMany
@JoinTable(
    name = "message_attachments",
    joinColumns = @JoinColumn(name = "message_id"), // current entity
    inverseJoinColumns = @JoinColumn(name = "attachment_id") // refers to the other entity
)
private List<BinaryContent> attachments;
  • joinColumns
    • This refers to the entity you’re currently in. Since you’re writing this annotation in the Message class, joinColumns refers to the Message side.
    • means: “In the bridge table, the column that points to THIS message should be called message_id”
  • inverseJoinColumns
    • This refers to the other entity (the “inverse” side). Since you’re in Message, the inverse is BinaryContent.
    • means: “In the bridge table, the column that points to the BinaryContent should be called attachment_id”

Visual Example

Your bridge table ends up looking like this:

message_attachments table:
┌─────────────┬───────────────┐
│ message_id  │ attachment_id │
├─────────────┼───────────────┤
│ msg-123     │ file-456      │  ← Message msg-123 has attachment file-456
│ msg-123     │ file-789      │  ← Message msg-123 also has attachment file-789
│ msg-999     │ file-456      │  ← Message msg-999 also uses file-456 (shared!)
└─────────────┴───────────────┘

Graph View

Backlinks
