RPC (Remote Procedure Call)

Overview

A request from a client to execute a function on a server

• When a computer program causes a procedure to execute in a different address space (perhaps on another computer) → location independent
• To the client, looks like a procedure call
• To the server, looks like an implementation of a procedure call

• Diagram

(Review) Local procedure call

• The caller and the callee are both in the same program (in same)
• Caller invokes function (by name) with arguments
  • Pass some arguments in registers, push others
  • Push return program counter
  • jump to first instruction in callee
• Callee (implementation of function)
  • Reads parameters from registers and stack
  • Computes function, possibly updates state, returns result
  • Jumps back to next instruction in caller
• Example
  • Caller: if (BuyBook(OSPP)) print(“Done!”);
  • Callee: Boolean BuyBook(char \*booktitle) { do stuff; return success; }
  • With an RPC, the BuyBook function would be running on a completely different computer
• Compiler defines protocol: name binding, where to find arguments, etc.

Remote procedure call (RPC)

• Client request to execute a function on the server
  • The goal is to hide the network communication from the developer.
    • The developer just writes result = BuyBook(OSPP), and the RPC framework handles all the complex network steps in the background.
• On client: result = BuyBook(OSPP)
  • Parameters marshalled into a message (arbitrary types)
    • Marshalling (also called “serializing”) = the process of taking the parameters (in this case, OSPP) and converting them into a standardized byte format that can be sent in a network message
  • Message sent to server (may be multiple pkts)
    • The byte stream (the “message”) is broken down into network packets and sent over the network (TCP/IP) to the server’s address
  • Wait for reply
• On server: implement BuyBook - The server has the actual BuyBook function code, it is listening for incoming network requests
  • message is parsed
    • Parsing (also called “unmarshalling” or “deserializing”) = the process of receiving the stream of bytes from the network and converting it back into the original data structures the function understands (e.g., the string "OSPP").
  • Perform operation (executes local BuyBook("OSPP")) & gets result
  • Put result into a message (may be multiple pkts)
  • Result returned to client
• The client (which was waiting) receives the message, parses (unmarshalls) the result, and its original function call result = BuyBook(OSPP) completes

Why Serialize?

• Procedure arguments can be values or pointers
  • Need to be assembled into a linear message
• What should happen if you call an RPC with a pointer?
  • Pass the pointer? Convert it to a global reference?
  • The RPC framework (the “stub” code that is auto-generated) detects that the argument is a pointer and follows one of two strategies, depending on how the pointer is being used.
  • File write - Pass a copy of the data it points to
    • Most common solution
    • Dereferences the pointer (follows it to the actual data), serializes (copies) that data, and puts the copy of the data into the network message
  • File read -Store the result

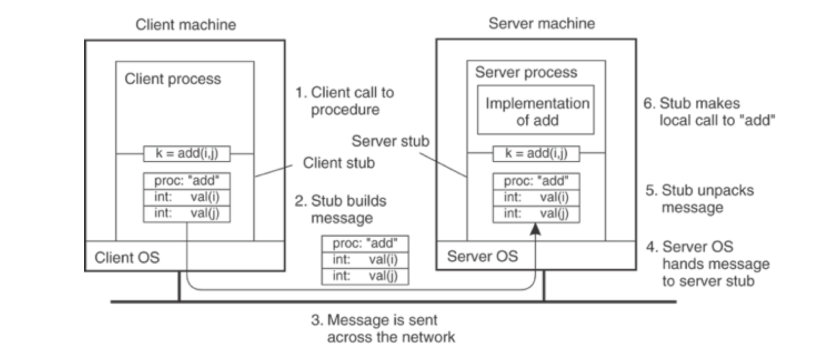

Implementation

RPC vs Procedure Call

Problems RPCs have that LPC (local procedural calls) don’t have

• Binding
  • Client needs a connection to server
  • Server must implement the required function
  • What if the server is running a different version? (ex, function accepts different parameters)
• Service Discovery Service
  • Solution to binding problem
  • Like a phonebook - Includes what services are available, including versions and packet formats (may be 1000s of APIs)
  • When server starts it registers itself here, when client makes a call it asks this service
• Interface Description Language (IDL)
  • An IDL (like Google’s Protobuf) is a file that acts as a language-neutral contract. You define the functions and, most importantly, the exact structure of the data.
  • automatically writes all the complex serialization/deserialization code for you, programmer just uses the generated classes
• Failures
  • What happens if messages get dropped? Duplicated? Delayed? Reordered?
  • What if client crashes?
  • What if server crashes?
  • What if server crashes after performing op but before replying?
  • What if server appears to crash but is slow?
  • What if network partitions?
  • (461 alert) Some are handled by TCP but what if TCP socket fails?
  • The Naive RPC is a simple implementation that is vulnerable to almost all failure listed above

Naive RPC

• The most basic implementation you could ever build (problematic)
• Nodes
  • Any number of clients and servers
  • No state at client or server
  • Server performs operation if it gets a message
• Messages
  • Client requests, server replies
  • Client request contains IP address of client/server, name of procedure, arguments
  • Server reply contains IP address of server/client, results
• Timers: none

What can go wrong?

• Message corruption
  • Delivered msg might be different: Becomes “buy Silberschatz” instead of “buy OSPP”
  • 📌Fix: include checksum or CRC or cryptographic signature in each message
• Message dropped
  • Request message dropped (due to failure)
    • operation not performed, client waits forever
  • Reply message dropped
    • operation was performed, but client doesn’t know if operation was performed, waits forever
  • 📌Fix with client timer and retransmit
• Request message duplicated
  • operation performed twice
• If multiple requests, and some are dropped
  • client doesn’t know which operation was done and which ones aren’t
  • 📌Fix: use unique ID per request: (client ID, sequence number)
• Message ordering
  • Network congestion
    • Client sends sequence of msgs to server (a,b,c,d..) (using threads) but some can get dropped (network congestion)
    • If it’s a sequence for CRUD (delete, create, then fill new file), if the sequence is mixed then it can’t do it properly
  • Network reorders packets, server gets different sequence
  • 📌Fix: Label messages with sequence number
    • {seq: 1, op: "delete"}
    • Detect missing messages & unneeded retransmissions
  • Labs assume each client sends only one RPC at a time
    • If client sends the next RPC, it means they must have received the reply for the previous one
    • Still need to worry about lost and duplicate and delayed RPCs
    • E.g., server might get a delayed request

RPC Semantics

• Semantics = meaning
• How many times will an RPC be executed by the server before it returns to the invoker of the RPC?
• At least once (NFS, DNS)
  • Client retries
  • If reply: executed at least once
  • If no reply: maybe executed, maybe multiple times
• At most once
  • • If reply: executed once
  • If no reply: maybe executed, but never more than once
  • Server prevents non-unique requests from compound
  • UID (sequence numbers like 1,2,3,4)
    • [Don’t use UUID.randomUUID]
  • Idempotent
• Exactly once
  • If reply: executed once
  • If no reply: keep waiting
  • At most once with retries

Research Papers

• A Cloud-Scale Characterization of Remote Procedure Calls (FOCI)
