Microservice Architecture (MSA)

What

Microservices Architecture (MSA) is a software structure where a single application is broken down into multiple, independent services - distributed system

• Each service is responsible for a single business function and can have its own database, deployment cycle, and even its own dedicated development team.
• You can use different tech stack per server (one can use Node.js, another can use 🐣Spring & SpringBoot). It will still work because everyone communicates through JSON (uniform format)

• Why Did MSA Emerge?
  • Traditional monolithic architectures, where all functions are bundled into a single system, had the following problems:
    • Even a small change to one function required a complete redeployment of the entire application.
    • The high degree of coupling between functions made maintenance difficult.
    • Horizontal scaling was inefficient, as you could only scale by duplicating the entire system, not just the parts under heavy load.
  • MSA emerged as a solution to these issues with a core principle: “Let’s split the application by function and allow each part to be deployed and operated independently.
• Companies
  • 당근 - laravel, ruby on rail, node js, spring
  • 무신사 - php
• Related to DevOps (usually starts with backend, then transitions)
• Scalability: The main goal is to handle growth.
  • Horizontal Scaling (Preferred Method): Add more servers to distribute the load. The cloud makes this easy and nearly limitless.
  • Vertical Scaling: Make a single server stronger. This is expensive and has hard physical limits.
  • 데이터 유출되는 게 위험한 회사들은 cloud보다 on premise를 쓰는 경우도 많음
• Major disadvantages
  • High Cost & Complexity: MSA is very difficult and expensive to set up and maintain.
  • Risky Transition: The project is so large that many companies fail to switch and have to go back to their old, simpler system.
  • Difficult to implement: In MSA, a single business action like a purchase often has to update multiple independent services (e.g., Payment Service and User Service). It is extremely difficult to automatically handle the failure of one service after another has already succeeded, leading to major data inconsistency.

Basic Components

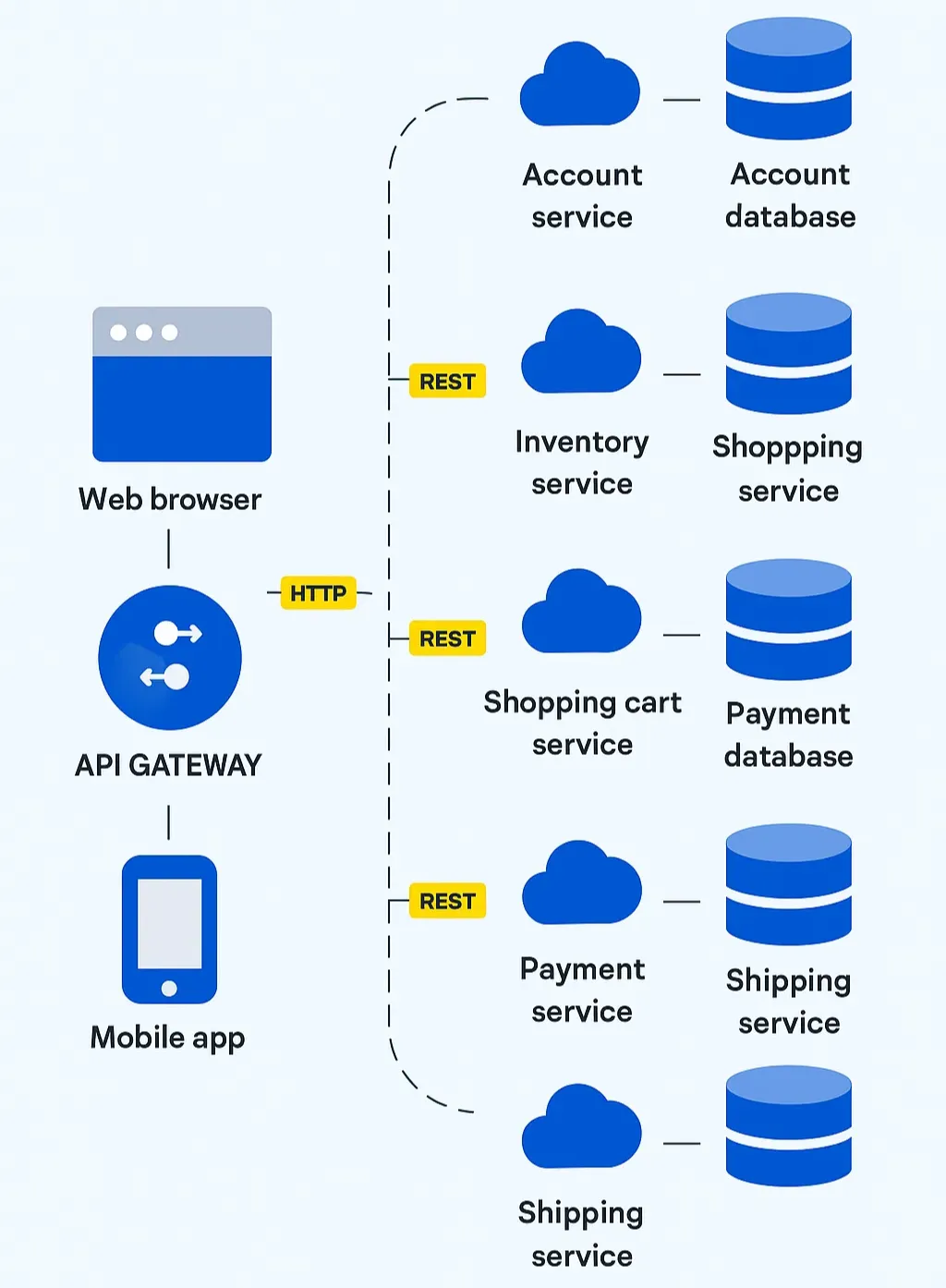

• diagram 1
• diagram 2
• a front component: The user-facing application (like a website or mobile app).
• gateway server, or reverse proxy server: This is the API Gateway.
  • The front door for all your services → The frontend talks to the gateway, and the gateway intelligently routes requests to the correct internal service.
• Each service has its own database

Characteristics

Feature	Description
Independence	Each service operates independently based on its business function (e.g., separate services for User accounts, Orders, and Payments).
API-centric	All services communicate with each other exclusively through APIs.
Database Separation	It is recommended that each service has its own dedicated database.
Team Separation	It enables domain-centric team structures, where separate teams own each service (e.g., a User Team, an Order Team).

API Communication Methods

3 most common methods

1. REST API
2. gRPC
3. Message Brokers (Event-Based Asynchronous Communication)
   • Uses tools like Kafka, RabbitMQ, or Redis Stream.
   • Creates a loose coupling between services, allowing for retries upon failure.
   • Advantageous for real-time notifications and for processing transactions in a decoupled manner.

Example code (w/ 🐣Spring & SpringBoot)

• Github code project (past 코드잇 project)

Using API Gateway

• In a large-scale MSA, clients don’t call each service’s API directly. Instead, an API Gateway is placed in the middle to perform the following tasks
  • Routing: Directs requests to the correct service (e.g., /api/users/** → user-service).
  • Authentication/Authorization: Handles tasks like validating JWTs.
  • Common Functions: Standardizes response formats and error handling.
• Common API Gateway technologies include Netflix Zuul, Spring Cloud Gateway, NGINX, and Kong. They are considered essential in enterprise environments.

Challenges

• Distributed Transactions: This is often solved using patterns like the Saga Pattern or the Outbox Pattern.
• Common Code Duplication: Requires a strategy for sharing models like Data Transfer Object (DTO), utility functions, and custom Exceptions.
• Service Discovery/Registration: Addressed by implementing a service discovery tool like Eureka or Consul.

Tips

• While gRPC offers great performance, its maintenance can be difficult. Consider your team’s capabilities before adopting it.
  • It’s often best to start with REST API and then selectively migrate to gRPC or an event-based model for specific internal services where performance is critical.
• When implementing Kafka, you must have a clear strategy to handle potential message loss, duplication, and ordering issues.
• Essential Ops Tools:
  • Monitoring: Prometheus + Grafana
  • Logging: ELK Stack (Elasticsearch, Logstash, Kibana)
  • Tracing: Jaeger

Summary

Topic	Description
Architectural Style	Microservices Architecture
Communication Methods	REST API, gRPC, Kafka, etc.
Core Tools	API Gateway, Message Broker, Service Discovery
Design Principles	Loose coupling, independent deployment, and separation of common modules.
Trend	A growing number of companies are adopting a hybrid strategy that combines REST and Kafka.
