Redirection - Manage Data Streams

Streams

• A flow of data between a program and its input/output
• you can redirect the output of a program into a file

Standard Streams: stdin, stdout, stderr

• It’s how a command can interact with the terminal
• By default, there are 3 communication channels for data
  • file descriptors
    • is a number that represents an input/output (I/O) stream
    • Linux assigns numbers 0-2 to these streams

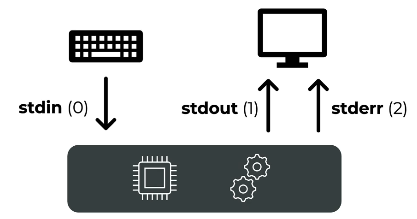

  • diagram
  • 0: stdin: standard input (keyboard)
    • If the program wants to access our keyboard, then it could start listening to the stdin, then the program could receive input for our keyboard
  • 1: stdout: standard output (screen)
    • The program wants to display something on the screen
    • So everything our program outputs, it just sends it to the stream stdout, then our terminal displays that in our terminal
  • 2: stderr: standard error
    • when terminal wants to output errors
    • by default this also gets printed to the screen

Redirection operators

Redirecting stdout

• These operators only redirect stdout to a file (doesn’t capturestderr)
  • By default, stdout(standard output) is printed to the screen.
  • Redirection tells bash to sendstdout to a file instead.
  • Adding/removing 1 to the operator doesn’t matter
• Operators
  • >
    • Redirects an output directly into a file
    • Redirects only stdout by default (doesn’t capture stderr)
    • overwrites file
    • echo 'hello' > test.txt
      • Creates new file if file doesn’t exist
      • same with echo 'hello' 1> test.txt

  • • Redirects stdout (appends to file)

Redirecting stderr

• Some reasons to use this
  • We may want to use this when we want to ignore errors (a program may print errors)
  • We are only interested in the errors and want to redirect them into a file (to have a look at them at a later date)
• Operators
  • If there are no errors, the file is emptied (for both operators)
  • 2>
  • 2>>

Redirecting stdin AND stderr

• Just use them in one line
  • du -h test.txt not_existing.txt > output.txt 2> error.txt
• You can ignore the errors using /dev/null
  • Redirect to a null device, a file we can open and write into it and it will be discarded by the operating system → /dev/null

Redirecting stderr to stdout

• It easily allows us to store both outputs in the same file
• &1 stands for current stdout
  • [command] 2>&1
    • we take our stderr and redirect it to the current stdout
      • both messages (stdout, stderr) will be combined into the same output stream (which could be saved to a file or displayed on the screen)
    • `du -h test.txt not_existing.txt 2>&1
  • [command] > out.txt 2>&1
    • we take the stdout from the [command] and the stderr to the out.txt
    • stdout is first redirected to out.txt, then stderr is redirected to the same destination as stdout (in this case `out.txt)
    • stdout should be redirected first when you’re combining redirections for both stdout and stderr
• Changing orders (order of redirects is important!)
  • declare the mappings before they are executed
  • Correct: du -h text.txt not_existing.txt > out.txt 2>&1
  • Wrong: du -h text.txt not_existing.txt 2>&1 > out.txt
    • error is shown in terminal, then out.txt will contain only the normal output
    • stderr redirected to current stdout → terminal
    • then stdout is redirected to out.txt
• Using &>
  • du -h test.txt not_existing.txt &> output.txt

What about stdin

• some programs also accept user input
• For example (bash commands)
  • wc -l lets us access our stdin (can use ctrl + d to quit)
  • cat
• can we redirect a file into stdin?
  • wc -l < output.txt
  • Bash will read output.txt and use this as stdin
• combining example
  • wc -l < output.txt > text.txt

Chart

Operator	What It Captures	Overwrites/Appends?
>	stdout (1)	Overwrites the file
>>	stdout (1)	Appends to the file
2>	stderr (2)	Overwrites the file
2>>	stderr (2)	Appends to the file
&>	stdout + stderr	Overwrites the file
&>>	stdout + stderr	Appends to the file
