Layer 4 - Transport

Layer4

Ensures reliable or efficient delivery of data between applications on different devices

• ensures the data reaches the correct application (e.g., browser, game, chat app) on that device using port numbers

• diagram
• Transport information from one device to another
  • Make sure the data arrives correctly, completely, and in order
  • doesn’t care where the destination is (that’s layer 3’s job), but it cares how the data moves between the 2 devices reliably
• The “post office” layer (like parcels/letters)
  • getting your information from one side of the network to another
• can divide a large file or msg into segments so they can be sent over the network
  • not about “fitting into the network size” but more about managing and organizing communication cleanly
    • Layer 4: “Here’s a big essay. I’ll chop it into organized pages to send.”
    • Layer 3: “Oh, the pages are too big for the envelope! I’ll slice them into smaller pieces to fit.”
  • also responsible for putting them back together

Sessions & state

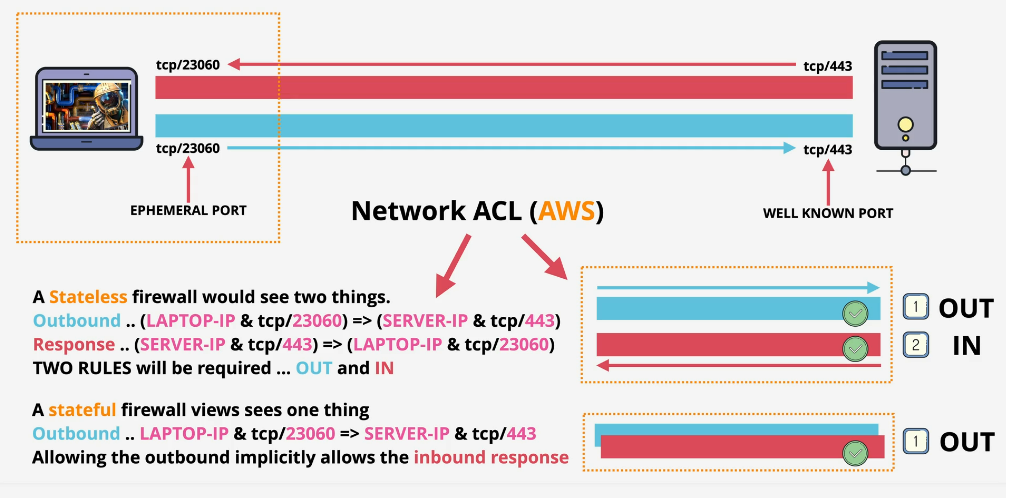

• stateless firewall
  • Network Access Control Lists (NACLs)
  • Each packet is evaluated in isolation
  • Two rules per connection:
    • One rule for the initial request (e.g., from your laptop to a server).
    • One rule for the response (e.g., from the server back to your laptop).
  • The firewall doesn’t “understand” the connection’s context (i.e., it doesn’t know if the response should match an outbound request). It simply checks each packet on its own.
• stateful firewall
  • The firewall knows if the initial request has been made and can automatically allow the corresponding response (since it’s part of the same connection).
  • Example: If you allow the initial outbound connection to a server, the firewall will automatically allow the response back in without needing a separate rule.

Traffic

• outbound
  • data that is leaving your device or network and going to another device or server → You need a rule allowing that outbound connection.
  • Ex) Your laptop sending a request to a server
• inbound
  • data coming back to your device or network from another device or server → You need a rule allowing the inbound response
  • Ex) After your laptop sends a request to a server (outbound), the server sends the response (like the website data) back to your laptop

Protocols

• Protocols (2 ways of sending data reliably or quickly)
• both run on top of IP and add a collection of features
  • Layer 3 - IP

TCP (Transmission Control Protocol)

TCP

It is a connection based protocol.

• A connection is established between two devices using a random port on a client and a known port on the server.
  • Backend Explained -Client-side vs Server-side]]
• Once established, the connection is bi-directional
• The connection is a reliable connection, provided via the segments encapsulated in IP packets

• Reliability, order correction, ordering of data
• Used for most of the important lab protocols (HTTP, HTTPS, SSH, etc)
  • HTTP requests (Express)
• Connection oriented protocol
  • connection between 2 devices, once set up it creates a bidirectional channel of communications

Architecture

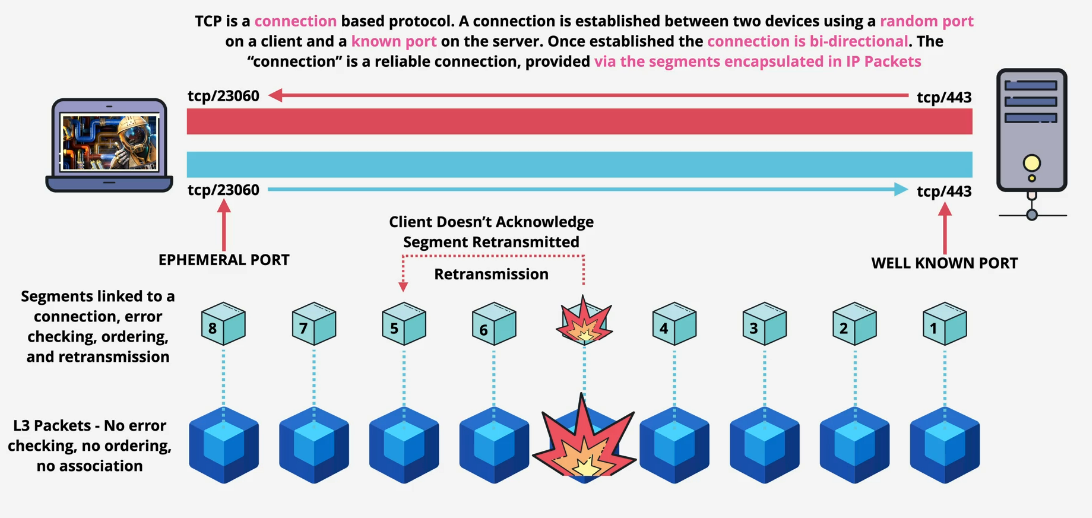

• TCP Stream/Channel: This represents a continuous, ordered flow of data between two devices. It’s established using TCP segments, which are the individual units of data transmission
• Ports
  • Ephemeral port /high ports- a temporary port number assigned by the client’s operating system for the duration of a session
    • typically in the range 49152–65535
  • Well-known port - a standardized port number used by servers to listen for incoming connections
    • range 0–1023
• from layer 4 perspective, two sets of segments are created because the data flows in two directions
  • one with source with ephemeral & dest with well known
  • vise versa
• often you will need to add firewall rules to allow the ephemeral/high port range back to the client
• so that’s why u need 2 sets of rules on a network ACL within AWS
  • (Access Control List) ACL - operates at OS/resource lvl

Segments

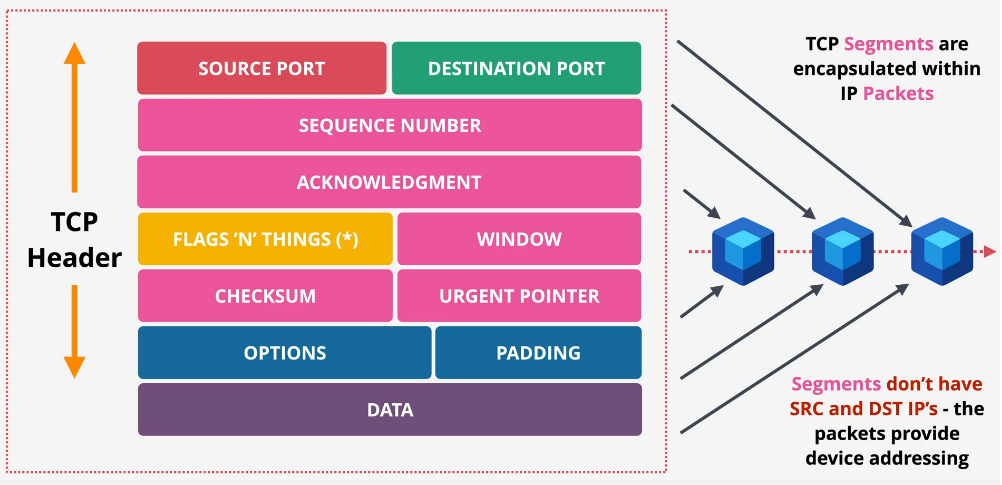

• TCP HEADER
  • encapsulated within IP packets
    • the segments are INSIDE the packets
    • the packets carry the segments from their source to their destination
  • Source port and destination port
    • has source port (sender’s app) and destination port (receiver’s app)
    • You can have multiple conversations between the same two devices (same IPs), but for different apps or tabs — each with a different port
    • Each conversation is a unique combination of the source and destination IP and the source and destination port
  • Sequence number
    • HOW MUCH DATA HAS BEEN SENT FOR THE SESSION
    • it is incremented with each segment that’s sent (ant it’s unique)
    • IP packets can be reordered correctly when received!
  • Acknowledgements
    • indicates that is has received cumulated data and is ready for the next segment
    • every segment which is transmitted needs to be acknowledged
      • if device 1 is sending segment 1,2,3,4 to device 2, then device 2 needs to acknowledge that it’s received them
    • the length here is the payload size

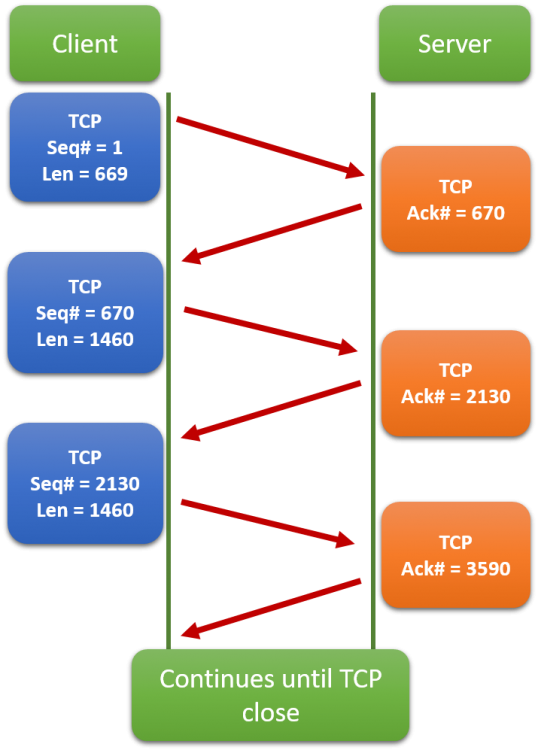

    • SEQ = 1 →the tcp segment length is 669: 669 bytes of data were sent in that TCP segment
    • each blue block is a frame (+ IP packet + TCP segment)
  • Flags ‘N’ Things (9 bits)
    • (flags + number of extra fields)
    • various controls over the TCP segments and the wider connection
    • used to close the connection or to synchronize the sequence numbers

    • flags that can be set to influence your connection

  • window
    • the number of bytes you indicate that you’re willing to receive between acknowledgements
    • once reached, the sender will pause until you acknowledge that amount of data
    • large windows are more efficient because the header of a TCP segment
  • checksum
    • error checking
  • urgent pointer
• AND THE DATA

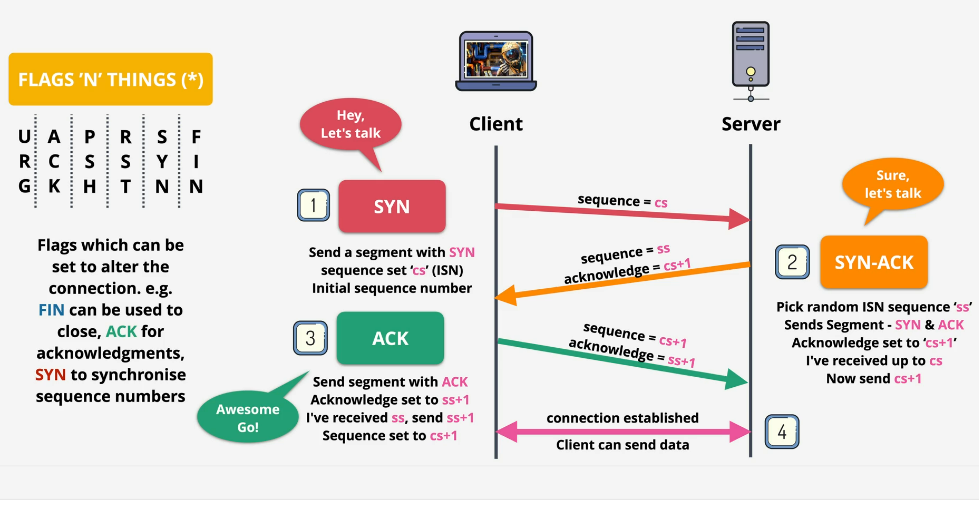

TCP Connection 3-way Handshake

SYN, SYN-ACK, and ACK are part of the initial connection setup. They are used at the beginning of a TCP connection, during the 3-way handshake.

• Once the 3-way handshake is complete, the connection is established, and the devices (client and server) can begin transferring actual data.
• Initial Sequence Number (ISN)
  • When two devices (sender and receiver) first establish a TCP connection (this is called a 3-way handshake), both agree on an Initial Sequence Number (ISN). This is usually randomly selected.
    • Since both devices are sending and receiving data, they each use their own ISN to track the data they send
• Subsequent Sequence Numbers
  • The sequence number of each segment is then calculated by the number of bytes sent.
  • If the first segment starts with sequence number 1000, and it contains 100 bytes, the sequence number of the next segment will be 1100 (1000 + 100).
  • If the next segment contains 150 bytes, its sequence number will be 1250 (1100 + 150), and so on.
• After the connection is established through the 3-way handshake, both the client and the server “pick up” from the sequence numbers they created during the handshake, and they continue to use those sequence numbers for data transfer

UDP (User Datagram Protocol)

• Faster, all about performance
• less reliable
• No TCP overhead required for the reliable delivery of data
